76M Stainess Steel Grooved Coupling DN20 to DN200 in Pipe Connection

PRODUCT INTRODUCTION

1. Description

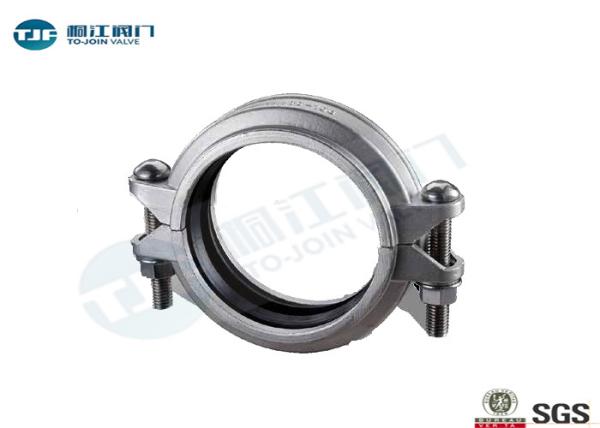

76M STAINLESS STEEL COUPLING

76M STAINLESS STEELMEDIUM PRESSURE FLEXIBLE COUPLING The Model 76M is designed for medium pressure reverse osmosis systems.

The Model 76M is supplied standard in CF8(304)and CF8M (316)

2. Design and Features

Sizes-Inches/DN

3/4" to 8 " ;(DN20 to DN200)

Rated working pressure:

600 psi (42 bar) Sch. 40S, cut groove only

MODEL 76M MATERIAL SPECIFICATIONS

Rubber Gaskets:

The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water,

hot water, rare acid, oil-free air and multiple chemical product (-50~150℃).It is not suitable for medium like petroleum.

Bolts&Nuts:

Type 304 stainless steel track bolts and nuts to ASTM F-593

Type 316 stainless track bolts and nuts to ASTM F593

Type 316 stainless track bolts to ASTM A193 B-8M with silicone bronze heavy duty nuts to ASTM B98 C65100

3. Coupling Drawing and Datasheet

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
