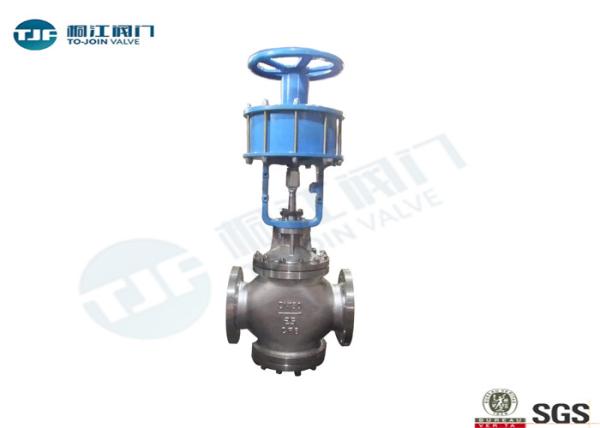

Penumatic Quick Cutting Off Valve in Piston Type , 3 Ways , SUS 316, Class 300 LB

PRODUCT INTRODUCTION

1. Description

ZSPQ Pneumatic Cutting-off valve is widely used in pneumatic valve of petroleum, chemical, metallurgy, paper, pharmaceutical, electroplating and other industries.

Pneumatic Cutting-off valve performance parameters:

1, working pressure: 1.6Mpa-42.0Mpa;
2, operating temperature: -196 +650 ℃;
3, drive modes: manual, worm gear, pneumatic, electric;
4, connection: internal thread and external thread, flange, welding, butt welding, socket welding, card sets, clamps;
5, Manufacturing standards: GB GB, JB, HG, American standard API, ANSI, British standard BS, Japanese JIS, JPI, etc.;
6, Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20 #, 25 #, forged steel, A105, F11, F22, stainless steel, 304,304 L, 316,316 L, Cr-Mo steel , cold steel, titanium steel.

Pneumatic Cutting-off valve using the new series GT type, AT-type pneumatic actuators, double acting and single-acting (spring return), rack and pinion, safe and reliable; AW series of large diameter valves using pneumatic actuator fork-type transmission , reasonable structure, large output torque, a double-acting and single-acting.

1. Gear dual-piston, the output torque, small size;
2. The choice of aluminum alloy cylinder material, light weight, beautiful appearance;
3. At the top, bottom mounting manual operating mechanism;
4. Rack connection opening angle can be adjusted, the rated flow;
5. The actuator feedback signal indicating an optional live and various annexes to automate operations;
6, IS05211 standard provides a convenient connection to install the replacement product;
7. Both ends of the adjusting screw allows the sections of standard products at 0 ° and 90 °, with an adjustable range of ± 4 °. 8. To ensure the accuracy of synchronization with the valve.

2. Specifications:

Body, sealing sleeve : HT200, ZG230-450 ZG1Cr18Ni9Ti ZGOCr18Ni12M02Ti
Valve, valve seat : 1Cr18Ni9Ti OCr18Ni12M02Ti 1Cr18Ni9Ti surfacing Stellite
Sleeve valve plug : 1Cr18Ni9Ti OCr18Ni12M02Ti 1Cr18Ni9Ti surfacing alloy too much food company
Packing : PTFE , flexible graphite
Corrugated diaphragm : NBR clip reinforced polyester fabric
Spring : 60Si2Mn
Stem , putter : 2Cr13, 1Cr18Ni9Ti
Spool valve plug ( soft parts ) : PTFE
Bellows : 1Cr18Ni9Ti

3. Features:

Cutting-off valve actuator and multi- spring adjustment mechanism connected with three columns, the entire height can be reduced by about 30 percent , reduce weight by about 30% .
Valve designed according to the principles of fluid mechanics , such as low flow resistance flow channel cross-section , the rated flow coefficient increases by 30%.
Trim part of a tight seal and soft seal type two , tight type of surfacing carbide, soft seal type of soft material, excellent sealing performance when closed .
Balanced trim , improved Xu shut-off valve with pressure .
Bellows sealed to form a complete movement of the valve stem seal , blocking the way out the possibility of media leaks .
Piston actuator , operating force, the use of a large pressure difference .

4. Steam Control Valve Outsize Drawing
