PVC Non Return Check Valve / Wafer Check Valve DN40 - DN300 With EPDM Seals

PVC Wafer Swing Check Valve with EPDM Seals, PN 10 Bar , DN 40-DN 300

Check Valve PRODUCT INTRODUCTION

Description

A Wafer Check Valve, or dual plate check valve, offers ease of maintenance and exceptional flow characteristics with the dual plate valves that give maximum strength with minimum opening time. The one piece design is available in metal or plastic materials to provide appropriate corrosion resistance for your application needs.

Features

• Installed with FIP QPV (d50 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges

• Metal support for easy and precise centring of the valve during installation

• Can be installed in either a vertical or horizontal position

• Sealing system with O-ring for optimum sealing and installation without flat gaskets

Installation

During installatin, make sure that the following requirements are complied with:

Leave a straight section of pipe of length equal to 5 times the nominal diameter before and after the valve.
Do not install the valve directly on the pump flange. The use of flat gaskets is rec- ommended in order to guarantee a perfect seal between the valve and stubs with serrated face.
Do not use pipes of thickness more than that of PN10 pipes.
The CR valve can be used on vertical pipes only if the fluid flow is upwards.
After having aligned the valve with the stub, tighten the flange bolts in a diagonal sequence to the required torque.

Specifications

Technical specifications
Construction	Wafer check valve
Size range	DN 40 -300
Nominal pressure	5 bar with water at 20 °C
Temperature range	0 °C - 60 °C
Coupling standards	Flanging system: DIN 2501 PN 10, EN ISO 1452, EN ISO 15493
Reference standards	Construction criteria: EN ISO 16137, EN ISO 1452, EN ISO 15493
	Test methods and requirements: ISO 9393
	Installation criteria: DVS 2204, DVS 2221, UNI 11242
Valve material	PVC-U
Seal material	EPDM

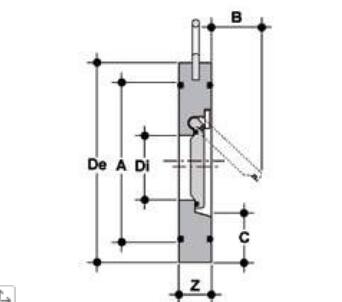

Valve Outline Size Drawing

d	DN	A	B	C	De ISO/DIN standards	Di	OP	Z	g	Code
50	40	72	25	28	95	22	0-5	16	160	CROV050E
63	50	86	37	29	109	32	0-5	20	260	CROV063E
75	65	105	50	31	129	40	0-5	20	330	CROV075E
90	80	119	61	32	144	54	0-5	20	400	CROV090E
110	100	146	77	31	164	70	0-5	22	560	CROV110E
140	125	173	94	35	195	92	0-5	23	760	CROV140E
160	150	197	100	40	220	105	0-5	25	1120	CROV160E
225	200	255	152	38	275	154	0-5	35	2130	CROV225E
280	250	312	180	41	330	192	0-5	40	3540	CROV280E
315	300	363	215	41	380	227	0-5	45	5350	CROV315E

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

Valve Packing with Plywood
PVC Non Return Check Valve / Wafer Check Valve DN40 - DN300 With EPDM Seals

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.
