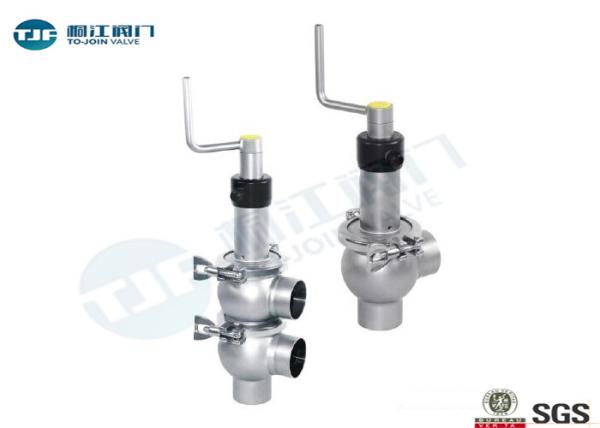

Stainless Sanitary Shutoff And Diverter Valve , ANSI 304L DN 50,
EPDM Seals
PRODUCT INTRODUCTION
1. Sanitary Double Shut off and Diverter Valves
When stopping or diverting flow in a processing system, the Adamant
Valves TJ-5 sanitary shutoff and diverter valve series single seat
valve line provides both a flexible and reliable solution. These
sanitary shutoff and divert valves are pneumatically or manually
operated, and offered in a wide variety of body configurations.
Materials
Materials: AISI-316L
Size: 1''-4''
Seat materials: EPDM (Std), other seats available upon request.
Elastomers: FPM (Std), EPDM (Opt) -- all seals complying with
FDA21CFR177.2600
Standard Design
The self draining machined and polished valve bodies are made from
acid resistant stainless steel. Their round shape offers minimum
resistance to flow. The valve body and pneumatic actuator are
connected by clamps enabling easy and quick assembly and
disassembly. The design ensures easy cleaning of the valve plug.
The configuration of valve can be changed from normally closed to
normally open or vice-versa by just inverting the actuator. All
seats and seals are made from FDA approved materials.
Actuators
Normally Closed (NC) - Air to open and spring to close;
Normally Open (NO) - Air to close and spring to open;
Air to Air (AA) - Air to open air to close;
Manual version - Opened or closed manually by rotating the handle.
2. Technical Specification
- Size available: DN25-1" to DN100-4"
- Max. working pressure: 147psi (10bar)
- Control air pressure: 70 ~ 116bar (5 ~ 8bar)
- Working temperature range: EPDM: 14 ~ 248°F (-10 ~ 120°C)
- Sterilization temperature: 302°F (150°C, Max. 20 min)
- Pneumatic connection: G1/8" (BSP)
- End connections: butt-welded, sanitary clamp, threaded, flange,
DIN, SMS, RJT, IDF or others upon request.
- Finish: <32Ra (<0.8µm); Other finishes available upon request
3. Technical Parameters of Sanitary Shut-Off Valve
Technical Parameters |
| Steel material | Product wetted steel parts | AISI 316L | Provided with material inspection report |
| Other steel parts | AISI 304 |
| Seal material | Standard | EPDM | All seal materials comply with FDA 21CFR117.2600 |
| Options | FPM, Silicone, NBR |
| Pressure | Working pressure | 0 ~ 147psi (0 ~ 10bar) |
| Supply pressure for air actuator | 5 ~ 8bar (70 ~ 116psi) |
| Temperature | Working temperature | EPDM: 14 ~ 248°F (-10 ~ 120°C) |
| Surface treatment | Inside surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
| Outside surface treatment | Sand blast or mirror |
| Connection | End connections: butt-welded, sanitary clamp, threaded, flange,
DIN, SMS, RJT, IDF or others upon request. |
| Pneumatic head | Normally Closed (NC) - Air to open and spring to close;
Normally Open (NO) - Air to close and spring to open;
Air to Air (AA) - Air to open, air to close. |
4. Variety Of Body Configurations
Dimensions (mm)
| DN | D | K | F | H1 | H2 | H3 | M (Clamp) |
25
32
40
50
65
80
100 | 29×1.5
35×1.5
41×1.5
53×1.5
70×2.0
85×2.0
104×2.0 | 91
91
91
130
130
195
195 | 55
65
65
75
90
105
120 | 402
463.5
463.5
506.7
524.4
629.2
653.7 | 344
405.5
405.5
448.7
566.2
571.2
595.7 | 55
62.5
62.5
75
90
105
120 | 21.5
21.5
21.5
21.5
28
28
28 |
| Inch | |
1.0"
1.5"
2.0"
2.5"
3.0"
4.0" | 25.4×1.65
38.1×1.65
50.8×1.65
63.5×1.65
76.2×1.65
101.6×2.11 | 91
91
130
130
195
195 | 55
65
75
85
95
120 | 402
463.5
506.7
522.5
616.2
653.7 | 344
405.5
448.7
564.2
558.2
595.7 | 55
62.5
75
85
95
120 | 12.7
12.7
12.7
12.7
12.7
15.8 |
