Ductile Iron Grooved Piple Coupling DN20 to DN300 for Building Pipeline

PRODUCT INTRODUCTION

1. Description

The Model 709 is designed for connection of grooved ultrahigh pressure pipe systems.

Sizes-Inches& Rated working pressure:

3/4" to 6";(DN20 to DN150) 2000psi(137.8bar)

8" to 12 " (DN200 to DN300) 1000psi(68.9bar)

Cut groove only

MODEL 709 MATERIAL SPECIFICATIONS

Housings:

Ductile Iron to ASTM A536

Surface Finish:

(Antirust paint red or blue)

Hot dip zinc galvanized ,Epoxy power ,Dacromet ,TRFLOW(PTFE), RilsanPA11

Rubber Gaskets:

The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for

cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150℃).It is not suitable

for medium like petroleum.

Bolts & Nuts:

Round-head, elliptoid-neck, carriage bolts, type carbon iron covered with zinc or dacromet.

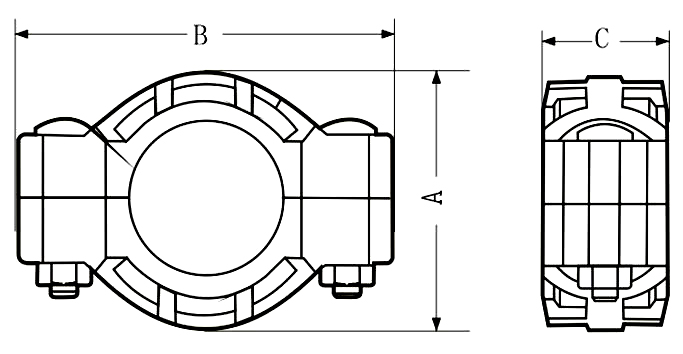

2. Grooved Pipe Coupling Drawing
