Industrial Ball Valve with Mounting Pad 3-Way ASTM A351-CF8M with
Threaded
PRODUCT INTRODUCTION
1. Ball Valve introduction
3-way ball valve in 316 stainless steel with mounting pad for
direct mounting for actuation, standard port configuration.
Available with NPT (threaded) end connections. 150PSI WSP; 1000PSI
working pressure and temperature ranges up to 475F. Ideal valve for
actuation.
3 way ball valve that is direct port and is offered in a threaded
(NPT) connection end. API 598 test standards with a blow-out-proof
stem design ensure a high cycle life. Available in sizes: 1/4", 3/8", 1/2", 3/4", 1" 1 1/4", 1 1/2" and 2".
THREADED 3-WAY STAINLESS STEEL BALL VALVE
The standard 3-way ball valve - the series 200 is available in high
quality 316 stainless steel in threaded (NPT) connection ends.
Mixing and diverting material, water/pulp/chemical/petro and
oil/gas industry all benefit from the 3-way ball valve series. The
series 200 is offered in manual mode as the default; however, electrical actuation or pneumatic actuation is available upon request.
OFFERED IN MULTI-PORT L-PORT OR T-PORT CONFIGURATIONS
All multi port valves are offered in multiple flow patterns. The 3
-way ball valve is offered with a T-Port or L-Port configuration.
Depending on your project requirements, TongJiang engineers can
customize the multi port valve to your needs.
2. Specification
Size Range : 1/4 ”- 2”
Rating: 1000 WOG
Valve Material : Stainless Steel
End Connections : Threaded
Seat Material :
Port Size : Full & Standard Port
Ball and Stem Material : Stainless Steel
3. Features
ISO 9002
The thread ends conform to ASME B 1.20.1(NPT) and ISO 228/1 & ISO
7/1
Investment Casting
Standard Port
Blow-out proof stem
1000 psi W.O.G.
15% glass fiberfill PTFE reinforced seat
Seal & packing PTFE
Latch lock handle
L Port or T Port
All valves tested and inspected to API-598
4. Safety/Quality Approvals
ISO 9001; PED 2014/68/EU

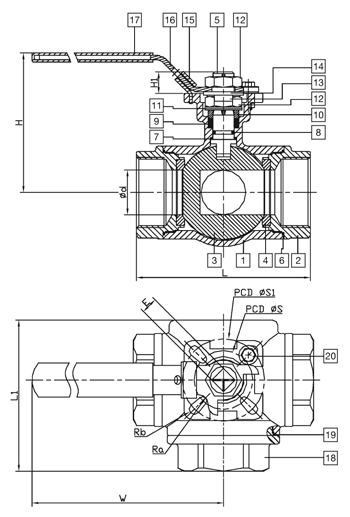

5. Three-Pieces Ball Valve Drawing and Datasheet
| SIZE | d | L | L1 | H | W | S | S1 | H1 | E | Ra | Rb | Torque |
|---|
| 1/4" | 0.46 | 2.99 | 2.30 | 2.87 | 4.84 | 1.42 | 1.65 | 0.35 | 0.35 | 0.12 | 0.12 | 89 |
| 3/8" | 0.49 | 2.99 | 2.30 | 2.87 | 4.84 | 1.42 | 1.65 | 0.35 | 0.35 | 0.12 | 0.12 | 89 |
| 1/2" | 0.49 | 2.99 | 2.30 | 2.87 | 4.84 | 1.42 | 1.65 | 0.35 | 0.35 | 0.12 | 0.12 | 89 |
| 3/4" | 0.63 | 3.39 | 2.83 | 2.99 | 4.84 | 1.42 | 1.65 | 0.35 | 0.35 | 0.12 | 0.12 | 133 |
| 1" | 0.79 | 3.90 | 3.21 | 3.43 | 6.02 | 1.65 | 1.97 | 0.43 | 0.43 | 0.12 | 0.14 | 195 |
| 1-1/4" | 0.98 | 4.61 | 3.72 | 3.66 | 6.02 | 1.65 | 1.97 | 0.43 | 0.43 | 0.12 | 0.14 | 266 |
| 1-1/2" | 1.26 | 4.88 | 4.09 | 4.33 | 7.20 | 1.97 | 2.76 | 0.55 | 0.55 | 0.14 | 0.18 | 416 |
| 2" | 1.50 | 5.83 | 4.92 | 4.69 | 7.20 | 1.97 | 2.76 | 0.55 | 0.55 | 0.14 | 0.18 | 514 |
*Actual torque values may vary. Please consult the factory.
**All torque values are in in-lb. Weight values are in lb.
Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang
Team.
