4 - Way 3 Seats Direct Mount Full Port Ball Valve SS316 Flanged Ends

PRODUCT INTRODUCTION

1. 4-Way Ball Valve introduction

This 4-way ball valve offers diverting and mixing flow patterns, often eliminating the need for two valves. The full port design is easily automated and is available with various seat materials. The bolts on side flanges make for easy seat changes as necessary to accommodate your service.

STANDARDS

• Valve body: ASME B16.34

• Material certification: EN10204-3.1 MTR

• Quality assurance: ISO 9001:2008

• Steel casting: MSS SP-55

• Valve marking: MSS SP-25

• Valve test: API 598

• Direct mount: ISO 5211

• End connection: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5

• Sulfide stress cracking: NACE MR-01-75

FEATURES AND BENEFITS

• Body and End Caps Quality Investment Casting (1/4″ to 4″) / Sand Casting (5″ to 8″)
• Available in Stainless Steel and Carbon Steel
• With ISO 5211 Direct Mounting Pad (1/4″ to 4″)
• Adjustable Stem Packing
• Blow-Out Proof Stem Design
• Floating (1/4″ to 2″) / Trunnion (2-1/2″ +) Design
• Available in L / T / X / I – Port
• Available in 3 / 4 / 5 – Way In Block Body Type
• 100% Air Tested Under Water at 80-100 psi
• Temperature Range -20°F to +600°F
• End Type: Butt Weld / Flanged / Socket Weld / Threaded
• Locking Function

OPTIONS

• Automation Applicable
• PTFE / PFA Coating (40-70 um)
• PTFE / TFM1600 / TFM4215
• PTFE Cavity Filler
• 180° Operation Stop Plate
• Hastalloy C / Alloy 20 / Super Duplex / Monel
• Fire-Safe Design
• Refer to DMHP3(4)L(T)2A00 Series for High Pressure

SIZE

• Ranges from 1/4″ to 16″

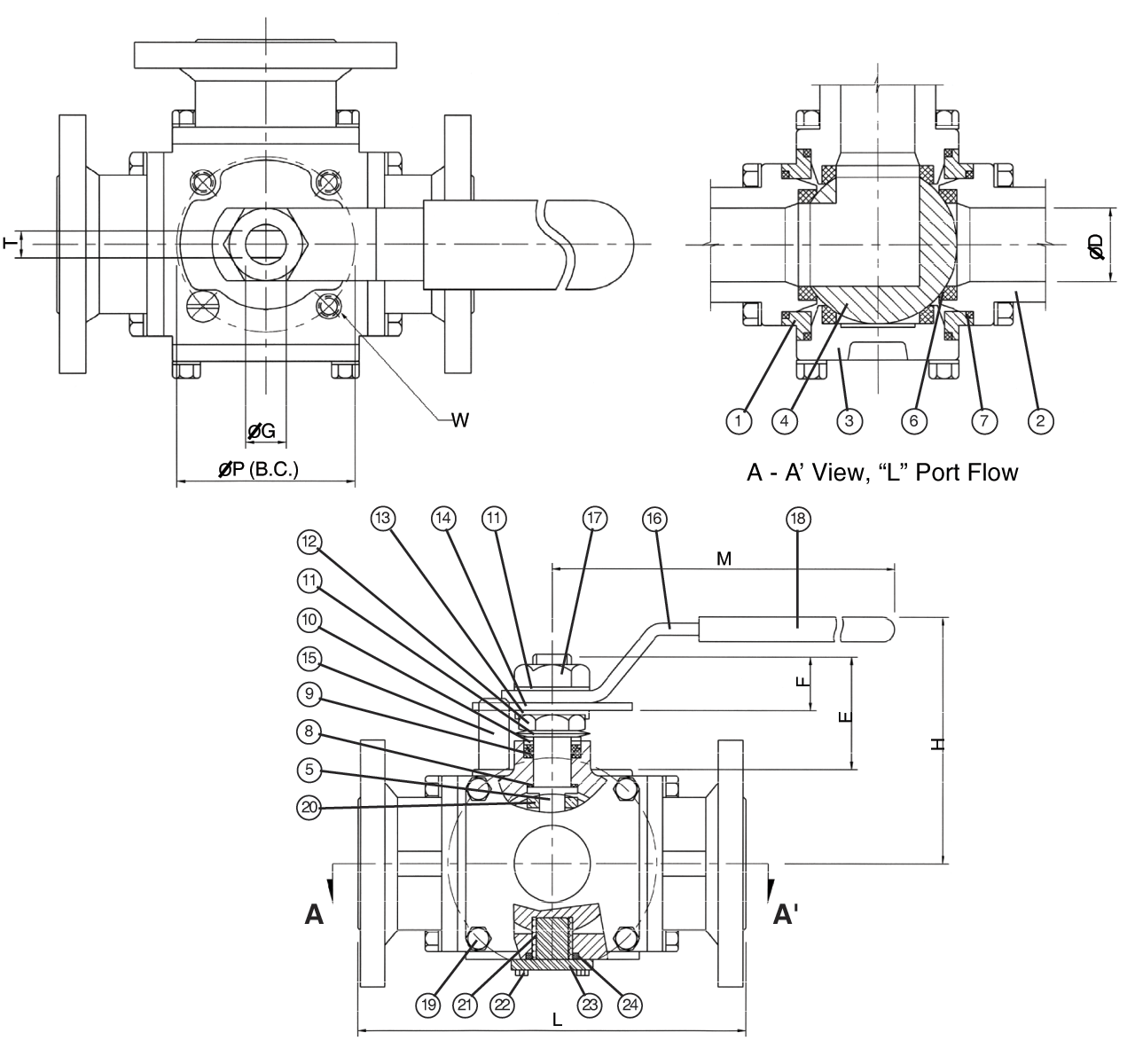

2. Ball Valve Drawing and Datasheet

DIMENSIONS (Inches)

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
