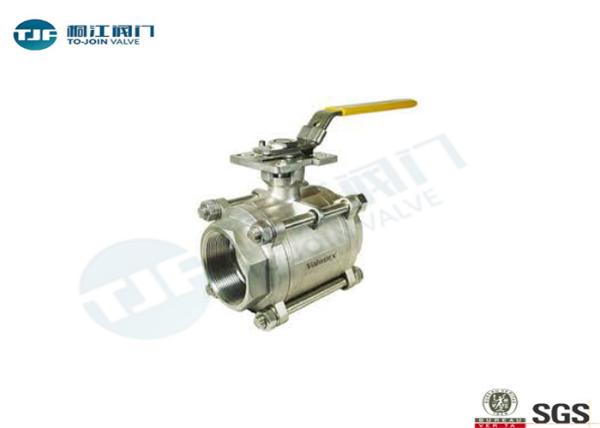

Direct Mount 3-Piece Full Port Industrial Ball Valve Satinless 304
with Threaded
PRODUCT INTRODUCTION
1. Ball Valve introduction
Industrial Ball valves feature direct mount Series 35 ball valves
feature direct mount for actuators with dual sets of ISO 5211
mounting patterns .
In combination with high life-cycle, and live-loaded stem packing
system, Series 35 ball valve provides an ideal choice for all your
automation requirements.
The 3-piece Swing-In-Place construction with a swing out center
section allows for ease of in-line and out-of-line maintenance and
installation.
Various interchangeable end connections and a wide range of seat
materials are available to meet most applications. All of the
Series 35 ball valves are equipped with standard blowoutproof
design.
This design is specified in which the stem is locked in the
original position to prevent shoot out, even in the event of excess
pressure in the pipeline system. In addition, all of the valve
balls in the Series 35 are fixed at one side; the top face is
interlocked with the stem, but the bottom face is free to move.
This result produces a floating ball effect. With the downstream
fluid flowing one direction, the ball forms an even tighter seal
with the valve seat ring. This also provides a lower torque, and
the ease of valve lever operation, as well as longer product life
span.
2. Specification
Size Range:1/4"- 4" (DN8~DN100)
Valve Material:Stainless Steel
End Connections:Threaded, Butt-Weld, Socket-Weld
Seat Material:Teflon
Port Size:Full Port
Ball and Stem Material:Stainless Steel
3. Features
(1) Direct mounting of actuators to valves
(2) Three-piece swing-out in-line maintenance design.
(3) High cycle self-adjusting stem seal offers significantly extra
longer cycle life
(4) Self-adjusting stem packing assembly with Belleville spring for
temperature fluctuations, vibration and is secured by a saddle type
lock washer
(5) Fully traceable materials
(6) Square stem can be with direct mount without bracket /adaptor.
(7) Bottom entry blow-out proof stem provides maximum safety
(8) Service Application :
Hydraulic,Chemical,Steam,Oil/Gas,Oxygen,Vacuum
4. Safety/Quality Approvals
ISO 9001; PED 2014/68/EU
5. Three-Pieces Ball Valve Drawing and Datasheet
| SIZE | d | L | ISO 5211 | A | B | S | h1 | d1 | d2 | d3 | d4 | R1 | R2 | Torque | WT |
|---|
| 1/2" | 0.59 | 2.95 | F03/F04 | 1.65 | 0.24 | 0.35 | 0.31 | 0.87 | 1.22 | 1.42 | 1.65 | 0.11 | 0.11 | 50 | 1.2 |
| 3/4" | 0.79 | 3.15 | F03/F04 | 1.65 | 0.24 | 0.35 | 0.35 | 1.07 | 1.22 | 1.42 | 1.65 | 0.11 | 0.11 | 60 | 1.7 |
| 1" | 0.98 | 3.54 | F04/F05 | 1.97 | 0.30 | 0.43 | 0.39 | 1.36 | 1.40 | 1.65 | 1.97 | 0.11 | 0.14 | 100 | 2.3 |
| 1-1/4" | 1.26 | 4.32 | F04/F05 | 1.97 | 0.30 | 0.43 | 0.43 | 1.70 | 1.40 | 1.65 | 1.97 | 0.11 | 0.14 | 180 | 4.0 |
| 1-1/2" | 1.50 | 4.70 | F05/F07 | 2.76 | 0.33 | 0.55 | 0.55 | 1.92 | 2.20 | 1.97 | 2.76 | 0.14 | 0.18 | 210 | 5.4 |
| 2" | 1.97 | 5.51 | F05/F07 | 2.76 | 0.33 | 0.55 | 0.55 | 2.41 | 2.20 | 1.97 | 2.76 | 0.14 | 0.18 | 300 | 8.6 |
| 2-1/2" | 2.56 | 7.28 | F07/F10 | 3.94 | 0.39 | 0.67 | 0.67 | 2.76 | 2.76 | 2.76 | 4.02 | 0.18 | 0.22 | 500 | 21.3 |
| 3" | 2.99 | 8.07 | F07/F10 | 3.94 | 0.39 | 0.67 | 0.67 | 2.76 | 2.76 | 2.76 | 4.02 | 0.18 | 0.22 | 900 | 28.2 |
* Actual torque values may vary. Please consult the factory.
* All torque values are in in-lb. Weight values are in lb.
