Standard Type 1-Piece Reduced Port Ball Valve JIS SUS13 and SUS 316
PRODUCT INTRODUCTION

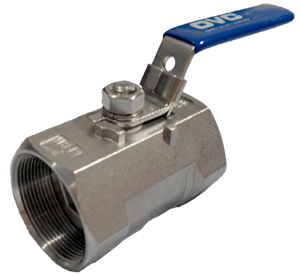

1. Standard Type 1-Piece Reduced Port Ball Valve Introduction
Standard type 1 piece reduced port ball valve is features
compactness, lightweight, as well as other special design features.
The ball valves can be used in many applications such as hydraulic,
chemical, steam, oil/ gas, oxygen, and vacuum environments. To meet
such diverse conditions, TongJiang offers the highest quality for
our valves.
The original one-piece and retainer screw- in design gives the
advantage of avoid using excess body pieces. This design provides
the extra body strength and minimizes the chances of leaking. The
valve bodies are constructed by high quality investment cast
materials with retraceable furnace number for future references.
Standard blowout-proof stem design is also implemented in one piece
reduced ball valve. Instead of insert the stem from the top, it is
installed from inside of the valve to prevent accidental shoot out
during unexpected events such as the presence of excess pressure
inside the pipeline system. The stem is also equipped with thrust
washer and stems packing to prevent the galling between metals, and
further reduces torque and creates a secondary stem seal. The
double D design of the stem head also offers the easiness to lever
and handle mounting process.
There is a wide selection of spare parts to meet customer’s
satisfactions. The ball seat material can be selected from common
PTFE to superior PEEK. The valve handles can also be chosen from
various styles other than the original lever handle, such as oval
handle and wing handle. More information is available upon request.
2. Specification
Size Range:1/4"- 2"
Temperature:-20℉ ~ 400℉
Rating:1000 PSI; 150 PSI Saturated Steam
Flow bore:Reduced port
Valve Material : ASTM CF8M,CF8, WCB
End Connections:Threaded
Seat Material:PTFE/R.PTFE
Port Size:Reduced Port
Ball and Stem Material:Stainless Steel
3. Features
Investment cast benefits high quality casting
Single piece body, screwed insert design eliminates the possible
leak path
Thrust washer prevents galling, reduces torque and provides
secondary stem seal
High cycle self-adjusting stem seal offers significantly extra
longer cycle life
Double D Stem Head Design Provides Mounting Of The Lever
Bottom Entry Blow-Out Proof Stem design Provides Maximum Safety
Option : Wing, Oval handle, Lock device
Female pipe Threaded to NPT, DIN 259/2999, BS21.
Inspection & testing according to API 598.
Applications for Hydraulic, Chemical, Steam, Oil/ Gas, Oxygen,
Vacuum
4. Safety/Quality Approvals
ISO 9001; PED 2014/68/EU

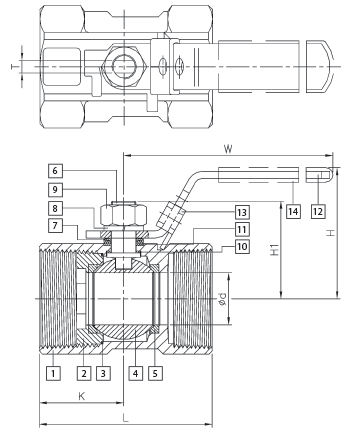

5. Ball Valve Drawing and Datasheet
| SIZE | ød | L | H | H1 | T | W | K | Torque | WT |
|---|
| 1/4" | 0.20 | 1.54 | 1.50 | 0.67 | 0.12 | 2.43 | 0.79 | 8 | 0.15 |
| 3/8" | 0.28 | 1.73 | 1.62 | 0.84 | 0.16 | 2.89 | 0.91 | 9 | 0.23 |
| 1/2" | 0.35 | 2.22 | 1.60 | 1.03 | 0.20 | 3.73 | 1.14 | 11 | 0.39 |
| 3/4" | 0.49 | 2.32 | 1.74 | 1.13 | 0.20 | 3.73 | 1.14 | 16 | 0.57 |
| 1" | 0.59 | 2.80 | 2.22 | 1.44 | 0.24 | 4.39 | 1.38 | 26 | 0.93 |
| 1-1/4" | 0.79 | 3.07 | 2.44 | 1.59 | 0.24 | 4.43 | 1.50 | 44 | 1.65 |
| 1-1/2" | 0.98 | 3.27 | 2.49 | 1.83 | 0.31 | 6.30 | 1.59 | 66 | 1.87 |
| 2" | 1.26 | 3.94 | 2.70 | 2.01 | 0.31 | 6.32 | 1.93 | 79 | 2.98 |
* Actual torque values may vary. Please consult the factory.
* All torque values are in in-lb. Weight values are in lb.
