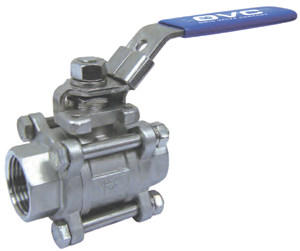

Mounting Pad 3-Piece Full Port Ball Valve Satinless 316 with
Threaded
PRODUCT INTRODUCTION
1. Ball Valve introduction
Ball Valve Feature Mounting Pad Series 32 ball valves provide the
3-piece design with the highest flexibility in selection of end
connections and seat materials.
The 3-piece design features in-line and out-of-line maintenance as
the center section can be easily accessed without disturbing the
pipe connections.
Integrally ISO 5211 cast mounting pads ensure alignment and
convenience for ease automation with the bracket and adaptor.
All of these valves are suitable for applications requiring high
flow capacity and tight shutoff, where reliability, functionality
and interchangeability are essential for the product quality at an
economical price.
Mounting Pad The integrally cast mounting pad, complying with ISO
5211 standard, ensures the ease for actuator mounting.
Ease of Maintenance
The center section can swing out after removing the body bolt which
goes through the body hinge, loosen the remaining bolts,
eliminating the need to cut a valve out of line and having to
replace both the valve and the pipe.
Pressure Rating: 1000 psi (PN64) 800 psi (PN40) 150 psi (10 bar) with saturation
steam
Temperature Range: -4°F to 350°F (-20°C to 180°C) with PTFE/RPTFE seats
Body Material: ASTM CF8M, CF8, WCB (DIN 1.4408. 1.4308, 1.0619)
End Connection: Threaded Butt-welding Socket-welding Custom-build
2. Specification
Size Range : 1/4”- 4”
Valve Material : Stainless Steel
End Connections : Threaded/Socket-welding/Butt-welding end
Seat Material : PTFE
Port Size : Full Port
Ball and Stem Material : Stainless Steel
3. Features
Investment cast benefits high quality casting
Anti-blowout stem as standard for greater safety
Fully traceable materials
Actuator mounting conforms to ISO5211 for ease automation
Option: oval safety handle, lock-out device
Service Application :
Hydraulic,Chemical,Steam,Oil/Gas,Oxygen,Vacuum
4. Safety/Quality Approvals
ISO 9001; PED 2014/68/EU
5. Three-Pieces Ball Valve Drawing and Datasheet
| SIZE | d | L | H | W | D | A | M | S | T | H1 | H2 | ISO 5211 | Torque | WT |
|---|
| 1/4" | 0.46 | 2.56 | 2.30 | 3.94 | 1.42 | 1.57 | M5 | 3/8"-24UNF | 0.20 | 0.76 | 0.53 | F03 | 67 | 0.8 |
| 3/8" | 0.49 | 2.56 | 2.30 | 3.94 | 1.42 | 1.57 | M5 | 3/8"-24UNF | 0.20 | 0.76 | 0.53 | F03 | 67 | 0.8 |
| 1/2" | 0.59 | 2.56 | 2.44 | 3.94 | 1.42 | 1.84 | M5 | 3/8"-24UNF | 0.20 | 0.76 | 0.53 | F03 | 67 | 1.1 |
| 3/4" | 0.79 | 2.95 | 2.44 | 4.92 | 1.42 | 2.06 | M5 | 7/16"-20UNF | 0.26 | 0.88 | 0.63 | F03 | 67 | 1.6 |
| 1" | 0.98 | 3.35 | 3.03 | 5.87 | 1.65 | 2.29 | M5 | 7/16"-20UNF | 0.31 | 1.01 | 0.64 | F04 | 111 | 2.3 |
| 1-1/4" | 1.26 | 3.98 | 3.23 | 5.87 | 1.65 | 2.74 | M5 | 7/16"-20UNF | 0.31 | 1.01 | 0.64 | F04 | 133 | 3.6 |
| 1-1/2" | 1.50 | 4.41 | 3.94 | 7.48 | 1.97 | 3.06 | M6 | 1/2"-20UNF | 0.39 | 1.17 | 0.79 | F05 | 177 | 5.3 |
| 2" | 1.97 | 5.12 | 4.25 | 7.48 | 1.97 | 3.55 | M6 | 1/2"-20UNF | 0.39 | 1.17 | 0.79 | F05 | 222 | 7.7 |
| 2-1/2" | 2.48 | 6.38 | 5.39 | 9.84 | 2.76 | 4.51 | M8 | 3/4"-10UNF | 0.47 | 1.55 | 1.08 | F07 | 567 | 14.8 |
| 3" | 2.99 | 7.40 | 5.71 | 9.84 | 2.76 | 6.64 | M8 | 3/4"-10UNF | 0.47 | 1.55 | 1.08 | F07 | 753 | 21.6 |
| 4" | 3.78 | 8.82 | 7.05 | 12.72 | 4.02 | 8.48 | M10 | 1"-8UNF | 0.63 | 2.11 | 1.57 | F10 | 841 | 42.3 |
* Actual torque values may vary. Please consult the factory.
* All torque values are in in-lb. Weight values are in lb.
