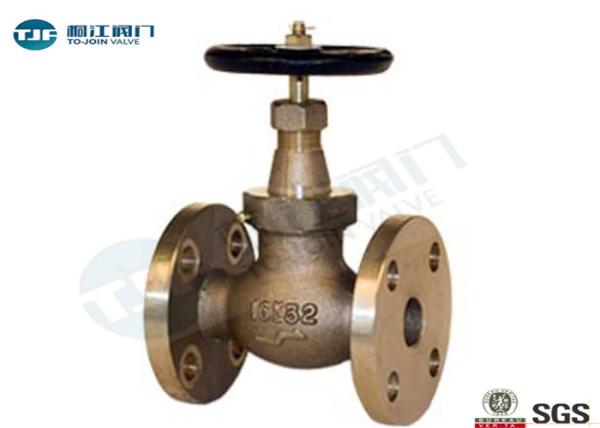

Globe Stop Valve in Marine Bronze 5K in JIS F7301 for Seawater with
Flange
PRODUCT INTRODUCTION
Description of Globe Stop Valve
Globe valve has a bulb like body with a valve seat, which can have
a screw-down plug or a disc acting as valve. The surfaces of valve
and valve seat are made up a hard alloy of cobalt and chromium with
cobalt as the principal ingredient. The seat is secured into the
valve chest with a help of light interference fit and grub screw. A spindle or stem with square or vee
threads above and below the stuffing box is used. The spindle is
held in the valve disc by a nut. Stuffing box is fixed with an
appropriate gland around the spindle in order to prevent leakage.
Bronze metal seated gland packed globe valve to JIS Japanese
specifications. Suitable for cold and hot water, seawater,
saturated steam, oil and other neutral non aggressive liquids.
Marine Globe Valve Design Features
• JIS 5K specifications
• Class society survey can be arranged
• 3.1 & 3.2 certificates available on request
• Screw lift • 15-40mm Secured screwed bonnet
• 50-65mm Bolted bonnet
• Gland sealed
• Bronze / brass disc
• Rising stem
Pressure & Temperature
Non-shock water: 7 Bar @ 120oC
Air, Gas, Steam, Pulsating Water: 5 Bar @ 205oC
Specification
| MATERIALS |
| Body | Bronze |
| Bonnet | Bronze / Brass |
| Stem | Brass |
| Disc | Bronze / Brass |

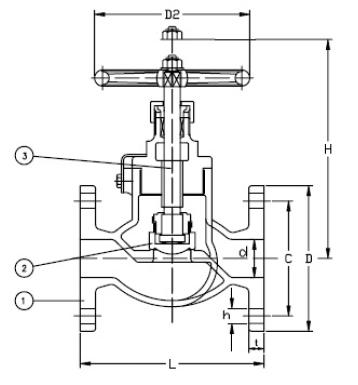

Globe Stop Valve Drawing and Datasheet
 Screwed Bonnet for sizes 15A - 40A| No. | Component | Material | | 1 | Body | Bronze | | 3 | Disc | Bronze | | 4 | Stem | Brass |
|
Bolted Bonnet for sizes 50A - 65A| Nominal Pressure | 5K | 16K | | Hydraulic Inspection | Body | 10.5kg | 33kg | | Seat | 7.7kg | 24.2kg |
|
| Type | Size | L | D | C | No. | h | t | H | D2 | Kg |
| F7301 5K | 15A | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 | 2.02 |
| 20A | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 | 2.86 |
| 25A | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 | 3.54 |
| 32A | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 | 5.00 |
| 40A | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 | 6.48 |
| 50A | 210 | 130 | 105 | 4 | 15 | 14 | 235 | 140 | 11.70 |
| 65A | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 | 17.00 |
| F7303 10K | 15A | 110 | 95 | 70 | 4 | 15 | 12 | 130 | 80 | 2.76 |
| 20A | 120 | 100 | 75 | 4 | 15 | 14 | 140 | 100 | 3.72 |
| 25A | 130 | 125 | 90 | 4 | 19 | 14 | 160 | 125 | 5.20 |
| 32A | 160 | 135 | 100 | 4 | 19 | 16 | 170 | 125 | 6.91 |
| 40A | 180 | 140 | 105 | 4 | 19 | 16 | 190 | 140 | 8.43 |
