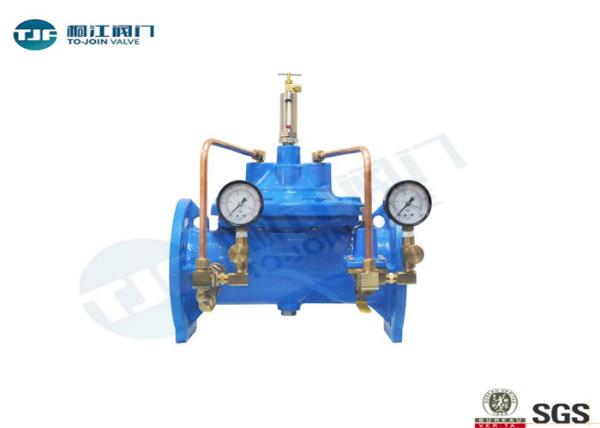

Hydraulic Water Pressure Reduce Valve , Ductile Iron GGG50 , PN 16
, Flange
PRODUCT INTRODUCTION
1. Description
The pressure-reducing valves reduces and stabilizes the outlet
pressure, regardless of any water demand or any variation of inlet
pressure. These pressure-reducing valves work with the self energy
of the medium, to adjust the pipeline pressure through the pilot
valve. Pressure-reducing valve with high accuracy of level control,
debug service, easy to install and to maintain.
2. Features and Advantage
Flanges drilling: UNI EN 1092-2 PN 10, PN 16, PN 25
Installation: horizontal
FIELDS OF APPLICATION: civil and industrial plants aqueducts
Epoxy painting suitable for potable drinking water applications
3. Specification
Materials
| Body - bonnet | Ductile iron GGG50, EN-GJS-500-15 |
|---|
| Stem | Stainless steel AISI 410 |
|---|
| Seat | Stainless steel CF8M |
|---|
| O ring - diaphragm | EPDM |
|---|
| Spring | Stainless steel AISI304 |
|---|
| Ball valve | Brass |
|---|
| Painting | Epoxy 250 mcr |
|---|
4. Hydraulic Control Valve Outsize Drawing
| DN | L mm | PN 16 | H mm | H1 mm |
| | D mm | D1 mm | | |
| 50 | 203 | 160 | 125 | 395 | 278 |
| 65 | 235 | 180 | 145 | 405 | 298 |
| 80 | 285 | 195 | 160 | 430 | 313 |
| 100 | 360 | 215 | 180 | 510 | 350 |
| 125 | 400 | 245 | 210 | 560 | 365 |
| 150 | 455 | 280 | 240 | 585 | 420 |
| 200 | 585 | 335 | 295 | 675 | 450 |
| 250 | 650 | 405 | 355 | 730 | 470 |
| 300 | 800 | 460 | 410 | 760 | 490 |
| 350 | 860 | 520 | 470 | 840 | 526 |
| 400 | 915 | 580 | 525 | 910 | 570 |
| 450 | 980 | 640 | 585 | 1030 | 610 |
| 500 | 1075 | 705 | 650 | 1135 | 665 |
| 600 | 1230 | 840 | 770 | 1270 | 725 |
If you require other sizes and valve design standards, please send
email to angela@tjfmcn.com to get the drawing.
5. Hydraulic Control Valve Packing with Plywood
Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang
Team.
