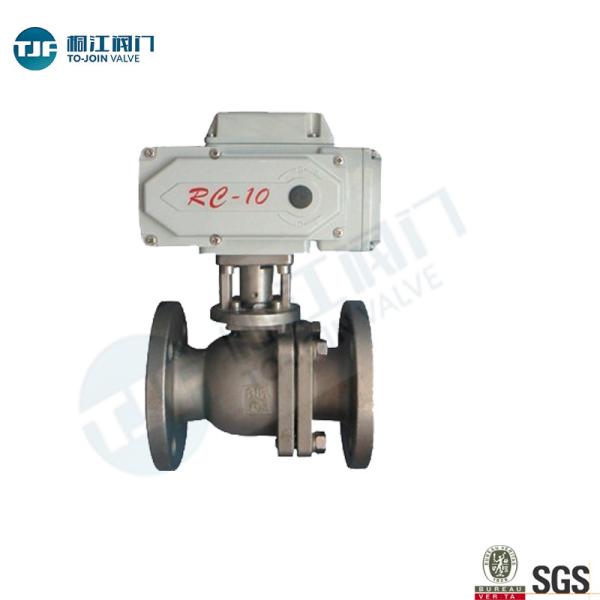

Stainless Industrial Ball Valve in ASME B16.10 with Electric
Actuator
PRODUCT INTRODUCTION
1. Specification
| Types of Full Welded Ball Valve | Fabricated body and forged body |
| Application of Full Welded Ball Valve | NG pipeline stations, Compressor and Measuring stations, RMS
Pressure Regulating and Measuring stations; Underground & Above
ground applications |
| Temperature | -46°C up to 120°C |
| Fire safe Design Standard | NACE MR-01-75 requirements |
| Bore diameters Comply Standard | API 6D standard or as requirement |
| E to E dimension Comply Standard | API 6D & ANSI B16.10 or as requirement |
2. Design Features
» Above or underground options
» Floating ball or Trunnion Mounted
» Resilient or metal seated design
» Full port or reduced bore
» Double block and bleed
» Dual Piston Effect
» Uni-body with Butt-weld or Flanged Ends
» Seat Lubrication and emergency Sealing Device
» Ball material in Polished Stainless Steel 304 or higher grade
» Belleville spring structure to reduce the torque value and ensure
a "zero" leakage under high pressure and temperature
» Fire Safe; Anti-static device; Blow-out proof stem
» Alloy / PTFE Coating Stem Bearing with self-lubrication; Free
Lubrication
» Optional Stem Extension or Vertical device
» Optional Top flange to ISO 5211
» Optional locking device
3. Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/
resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V380V110V24V,DC12V24V etc; Special voltage can be
customized.
Explosion-proof class: Can be choose explosion-proof type EX d
IIBT4
| Type | Control type | Function |
| Electric actuator | ON-OFF type | Feedback: the active signal, passive contact signal, resistance,
4-20mA |
| Regulation type | Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS,
PROFIBUS field bus |
| Filed operation | The field, remote control switch regulation and MODBUS, PROFIBUS
field bus
|
4. Outline Size Drawing
ANSI 150LB Flange Electric Ball Valve Data
| Size | Inch | 150LB Size (mm) |
| L | D1 | D2 | D3 | D4 | T | H | n-d |
| 15 | 1/2 | 108 | 15 | 35 | 60.5 | 89 | 9.7 | 48 | 4-16 |
| 20 | 3/4 | 117 | 20 | 43 | 70 | 98.6 | 10.5 | 53 | 4-16 |
| 25 | 1 | 127 | 25 | 51 | 79.2 | 108 | 11.2 | 58.5 | 4-16 |
| 32 | 1 1/4 | 140 | 32 | 63.5 | 88.9 | 117 | 12.7 | 71 | 4-16 |
| 40 | 1 1/2 | 165 | 38 | 73.5 | 98.6 | 127 | 14.2 | 76 | 4-16 |
| 50 | 2 | 178 | 50 | 92 | 120.7 | 152.5 | 15.9 | 81 | 4-19 |
| 65 | 2 1/2 | 190 | 64 | 104.7 | 139.7 | 177.8 | 17.5 | 101.5 | 4-19 |
| 80 | 3 | 203 | 76 | 127 | 152.4 | 190.5 | 19.1 | 111.5 | 4-19 |
| 100 | 4 | 229 | 100 | 157.2 | 190.5 | 228.6 | 23.9 | 140 | 4-19 |
| 125 | 5 | 356 | 125 | 186 | 216 | 254 | 24 | 183 | 8-22.3 |
| 150 | 6 | 394 | 150 | 216 | 241.3 | 279.4 | 25.4 | 204 | 8-22.3 |
| 200 | 8 | 457 | 200 | 270 | 298.5 | 342.9 | 28.5 | 252 | 8-22.3 |
