Ceramic Gate Valve in Pneumatic Rotating Type , API609 , Flange
Type
PRODUCT INTRODUCTION
Description
Introduction:
Pneumatic Rotating Type Ceramic Gate Valves are designed for
pressurized and vacuum systems including dense and dilute phase
pneumatic conveying systems, discharge and vent applications in
steel plant and coal power. The whole of ceramic sealing faces of
the valves are well ground and polished, which is ensure a reliable
sealing performance of the valve.
Technical Specification
Connection Type: Flange
Size Range: 4"-12"
Pressure Range: Class 150
Applicable Temperature: 0℃-200℃
Sealing Material: Engineering Ceramics
Operating Mode: Pneumatic
Valve Body: GB/T12224, ASME B16.34
Pressure Test: GB/T13927, API598
Face to Face: GB/T12221, API609
Application
Pneumatic Rotating Type Ceramic Gate Valves is suitable for coal
fired power plant, steel plant, cereals transport system, cement
transport systems. In these applications, pneumatic conveying
method is used to reduce manpower demand, and improve system
efficiency and reliability, and is easy to realize automation.
Features
1. Product with customized structural length and connection size is
available.
2. The valves are sturdy and maintenance free enough to withstand
the most severe conditions.
3. The sealing faces of the valve are made of toughened engineering
ceramics with good abrasion resistance and prolonged service life.
4. The valve plate rotational motion of the valve disc can avoid
the ash deposition on the sealing surface, so the valves have much
longer service.
5. The rotation structure with shorter stroke makes and the whole
of ceramic sealing faces of the valves, which are ensure a reliable
sealing performance of the valve.

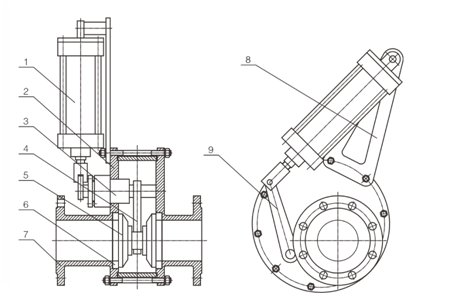

Rotary Ceramic Gate Valve Drawing and Datasheet
| No. | Part Name | Material |
| 1 | Pneumatic Cylinder | Aluminum | Aluminum |
| 2 | Body | WCB | CF8 |
| 3 | Stem | 17-4PH | 17-4PH |
| 4 | Swing Arm | WCB | CF8 |
| 5 | Disc | WCB+Ceramics | CF8+Ceramics |
| 6 | Seat | Ceramics | Ceramics |
| 7 | Adapter | WCB | CF8 |
| 8 | Yoke | AISI 1020 | SS304 |
| 9 | Driving Arm | WCB | CF8 |
Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang
Team.
