Ceramic Double Disc Gate Valve with Penumatic Actuator in WCB, CF8
PRODUCT INTRODUCTION
Description
Introduction:
The Ceramic Double Disc Valve is ceramics-to-ceramics sealing, also
named as parallel double disc valve, or ceramic double disc valve
or ceramic double gate valve.
The standard end connection of ceramic double disc valves is
flanged type, but if the installation space is limited, wafer type
is available.
Three piece bodies of Ceramic Double Disc Valves are very easy for
assemble and reliable for maintenance.
Self-cleaning disc design allows disc to move freely and avoid
being scratched by solid particles.
Temperature Range
Usually working temperature of pneumatic conveying system is not so
high, but under some conditions like economizer valves in coal
fired power plant, the working temperature may be up to 450 ℃. Then
special design of ceramics and packing material will be considered.
Normal working temperature of Ceramic Double Disc Valves: -29 °C ~
+200 °C
High temperature design of Ceramic Double Disc Valves: -29 °C ~
+450 °C
Design standards
Valve body ASME B16.34
Face-to-Face: Manufacturer’s Standard, customized length of Ceramic
Double Disc Valves is available.
Valve Testing: API 598

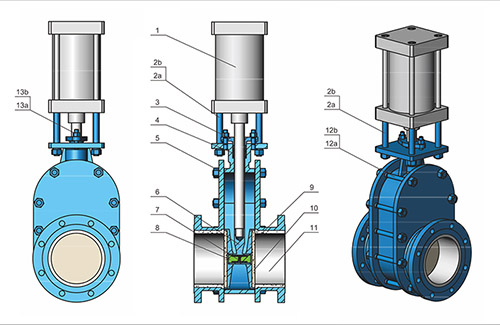

Ceramic Double Gate Valve Drawing and Datasheet
| No. | Part Name | Material |
| 1 | Pneumatic Cylinder | Aluminum | Aluminum |
| 2a | Bolt | AISI 1045 | F304 |
| 2b | Nut | A194 2H | A194 8 |
| 3 | Packing Gland | WCB | CF8 |
| 4 | Packing | Graphite | Graphite |
| 5 | Body | WCB | CF8 |
| 6 | Disc Driver | WCB | CF8 |
| 7 | Spring | 60Si2Mn | 17-7PH |
| 8 | Disc Adjusting Block | AISI 1045 | F304 |
| 9 | Disc | A105 | F304 |
| 10 | Disc Sealing Ring | Ceramics | Ceramics |
| 11 | Seat | Ceramics | Ceramics |
| 12a | Body Bolt | A193 B7 | A193 B8 |
| 12b | Body Nut | A194 2H | A194 8 |
| 13 | Gland Bolt | A193 B7 | A193 B8 |
| 13b | Gland Nut | A194 2H | A194 8 |
Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang
Team.
