Globe Stop Valve , CF8M, Class 150 LB, Flange ANSI B 16.5 in Power
Industry
PRODUCT INTRODUCTION
Description
J41H / W American Standard Globe Valve is suitable for cutting off
or connecting pipeline medium in various working conditions of
petroleum, chemical, pharmaceutical, fertilizer and electric power
industry with nominal pressure PN1.6-16MPa and working
temperature-29-550 C. The driving mode is manual, gear drive,
electric, pneumatic, etc.
Structural features
The design and manufacture of the product conform to the American
national standard ANS1B16.34, the United States BS1873 and other
advanced foreign standards.
The shape of the valve body is barrel shaped or streamlined. The
shape of circulation is straight through. The fluid resistance is
small.
Conical sealing is used for the sealing surface of the closing
parts (gate flaps) and the valve seat, with small closing force,
erosion resistance and reliable sealing.
The valve seat can be replaceable, and can be combined with sealing
surface materials at will to meet the requirements of working
conditions and extend the service life.
Large caliber and high pressure globe valves adopt lifting rod
according to the need of closing force, and are equipped with
rolling bearing type with impact handwheel to reduce closing force.
The main materials, interior materials, fillers and fasteners can
be reasonably combined according to user requirements or actual
working conditions.
Specification
Design and manufacture: ANSI B16.34 BS1873
Pressure temperature: ANSI B16.34
Structure length: ANSI B16.10
Butt welding joint size: ANSI B16.25
Flange Connection: ANSI B16.5
Inspection and experiment: API 598

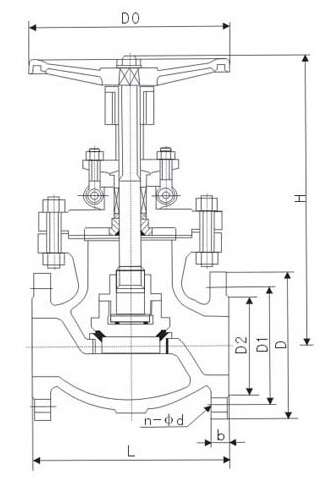

Globe Stop Valve Drawing and Datasheet
DN | 150Lb (RF) (mm) | Weight |
mm | in | L | D | D1 | D2 | b | n-φd | H | D0 |
15 | 1/2 | 108 | 89 | 60.5 | 35 | 11.2 | 4-16 | 241 | 100 | 6.9 |
20 | 3/4 | 117 | 98 | 69.9 | 43 | 12.7 | 4-16 | 241 | 100 | 9.8 |
25 | 1 | 127 | 108 | 79.2 | 51 | 14.2 | 4-16 | 242 | 125 | 13.5 |
32 | 11/4 | 140 | 117 | 89 | 63 | 16 | 4-16 | 280 | 160 | 19.5 |
40 | 11/2 | 165 | 127 | 98.6 | 73 | 17.5 | 4-16 | 286 | 160 | 28.5 |
50 | 2 | 203 | 152 | 120.7 | 92 | 19 | 4-19 | 368 | 200 | 18 |
65 | 21/2 | 216 | 178 | 139.7 | 105 | 22.4 | 4-19 | 387 | 200 | 30 |
80 | 3 | 241 | 190 | 152.4 | 127 | 24 | 4-19 | 411 | 250 | 41 |
100 | 4 | 292 | 229 | 190.5 | 157 | 24 | 4-19 | 454 | 250 | 64 |
125 | 5 | 356 | 254 | 216.0 | 186 | 24 | 8-22.5 | 455 | 350 | 86 |
150 | 6 | 406 | 279 | 241.3 | 216 | 25.4 | 8-22.5 | 541 | 350 | 113 |
200 | 8 | 495 | 343 | 298.5 | 270 | 28.4 | 8-22.5 | 651 | 450 | 178 |
250 | 10 | 622 | 406 | 362.0 | 324 | 30.2 | 12-25.4 | 800 | 450 | 270 |
300 | 12 | 698 | 483 | 431.8 | 381 | 32 | 12-25.4 | 1231 | 600 | 350 |
350 | 14 | 787 | 533 | 476.3 | 413 | 35 | 12-29 | 1450 | 600 | 460 |
400 | 16 | 914 | 597 | 539.8 | 470 | 36.6 | 26-29 | 1645 | 600 | 590 |
