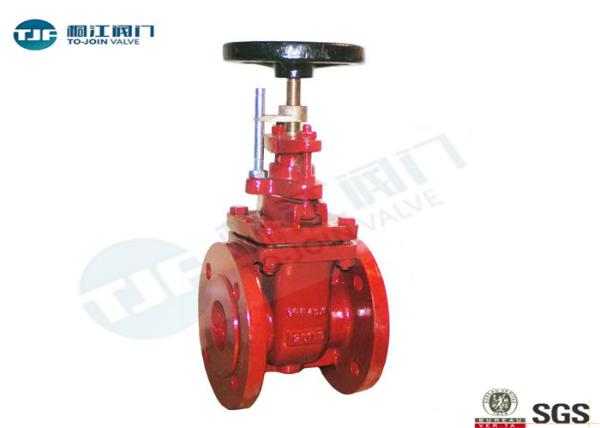

Cast Iron Stainess Marine Flanged Gate Valves Non-Rising Stem
Class150 lb
PRODUCT INTRODUCTION
Description
Gate Valve is among the most commonly used valves on board ships.
It is also one of the simplest valves in terms of design and
functionality.
As the name suggests, a gate valve consists of a simple mechanism
called as “the gate” or the valve disc, which performs the main
function of regulating the flow of the fluid. However, it is to note that the gate valve can have only no-flow
or full-flow condition and thus can only be operated in one
position. The valve gives a full bore flow without change of
direction.
Design:
- Union / Screwed / Bolted Bonnet
- Outside screw & yoke
- Face to face dimensions according to EN 558 series
- Flanged/ Threaded End Connections
- Rising stem
- Non rising hand wheel
On Request:
- Position Indicator
- Long face to face
- Short Face to face
- Gear, Electrical, Hydraulic actuation
- Class certification
- Stem extension
- Non-standard flange drilling
- ANSI Class 150 through 600
Material of Construction
- Body: Cast Iron / Ductile Iron / Bronze / Brass / Carbon Steel /
Stainless steel
- Ball: Bronze / Brass / Carbon Steel / Stainless steel
- Stem: Brass / Stainless Steel
- Seat: PTFE / RPTFE
- Gland packing: PTFE / Graphite
- Lever: Aluminium / Cast Iron / Steel
Marine Gate Valve Drawing
| Sizes | L | H | W |
| 2" | 7 (180) | 12-3/4 (325) | 7 (180) |
| 2-1/2" | 7-1/2 (190) | 13-1/2 (343) | 7 (180) |
| 3" | 8 (200) | 15 (381) | 7-7/8 (200) |
| 4" | 9 (230) | 17-3/4 (451) | 8-7/8 (225) |
| 6" | 10-1/2 (266) | 23 (584) | 12-1/2 (318) |
| 8" | 11-1/2 (290) | 27 (978) | 12-1/2 (318) |
| 10" | 13 (330) | 31-5/8 (803) | 14 (356) |
| 12" | 14 (356) | 35-5/8 (905) | 15-3/4 (400) |
| 14" | 15 (381) | 41 (1041) | 17-3/4 (451) |
| 16" | 16 (407) | 43-3/8 (1102) | 19-5/8 (498) |
| 18" | 17 (432) | 47-1/2 (1206) | 22 (559) |
| 20" | 18 (457) | 52 (1321) | 24-7/8 (632) |
