Stainless 316 Gate Valve , Bolted Bonnet, Parallel Side , API 600
PRODUCT INTRODUCTION
1. Gate Valve Product Description
- Cast body precisely machined with integral flanges.
- Cast bonnet with integral yoke up to 10”
- Two separate individual wedge with spring loaded and rigid guide
rails.
- Rising stem with precision ACME thread with single or double start
for quick operation.
- Stem packing is designed for optimum control of fugitive emission
leakage to the atmosphere and is assured by the polished finish
stem sealing area.
- Live loading on packing can be provided as request.
- Back seat shall be either threaded or welded in to facilitate the
replacement of packing under line pressure.
- Seat rings are welded in or integral to provide bubble tight joint.
- Two piece gland and gland flange arrangement for reduced stem wear.
- By-Pass, Lantern rings, special connection are as optional.
- Nace service either MR-01-75 or MR-01-03 as required.
- Valves can be supplied with Pneumatic, Hydraulic or electric
actuators.
- Accessories like limit switch, etc can be provided as optional.
2. Pressure Seal Flexibal Wedge Gate Valve Standard
| Specification | Details |
|---|
| Design Standard | API 600 |
| Pressure/Temperature Chart | ASME B16.34 |
| Face to face Dimension | ASME B16.10 |
| Testing Standard | API 598 |
| Flange Details | ASME B16.5 UP TO 24″
ASME B16.47 26″ and Above |
| Butt-Weld End Details | ASME B16.25 |
| Size Range | 2″ – 36″ (DN50 – DN900) |
| ASME Class | 150 – 2500 |
| Bore Type | Full Bore and Reduced Bore |
| Materials | WCB / LCB / LCC / CF8M / CF8 /
CF3M / 4A / 6A / Incone |
| Trims | F6a / F316 / F304 / F316L / F51 /
F55 / Inconel / Stellied or Hardfaced |
| Ends | Flange ends, Socket weld End, Screwed End,
Butt-weld End |

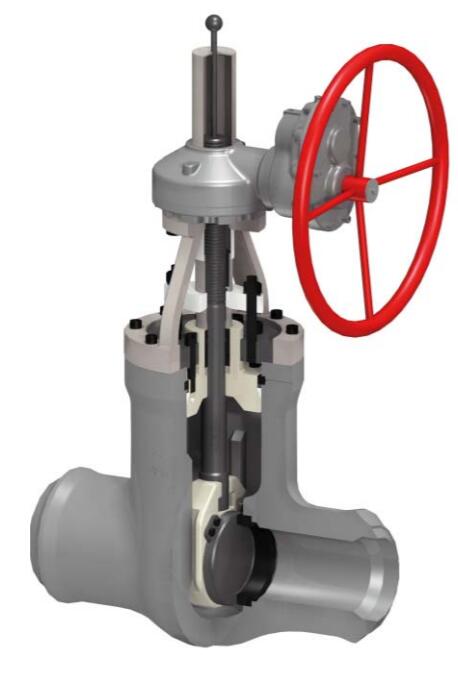

3. Pressure Seal Gate Valve Drawing
